Item #:
11-EBDG092

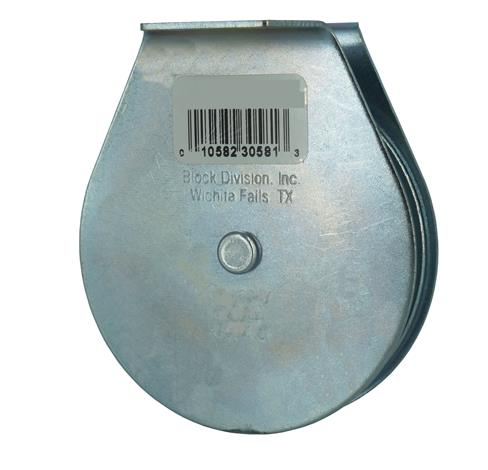

3.5" Flat Mount Pulley w/Snatch Pin, 1-Line (BD)
Durable 1-line flat mount pulley block featuring a zinc electroplated finish and an oil-impregnated bushing. Snatch pin allows sheave to be removed from the block body. Made in the USA by Block Division.
Key specs:
-
3.5” sheave outside diameter
-
5/16" maximum cable/rope diameter
-
1/4" diameter mounting holes
-
1550 lbs. working load capacity

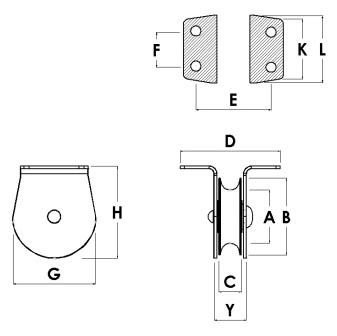

Below are the key dimensions noted in the secondary product image to the left:
-
A - 3"
-
B - 3-1/2"
-
C - 5/8"
-
D - 3-9/16"
-
E - 2-5/8"
-
F - 1"
-
G - 3-3/4"
-
H - 4-3/8"
-
K - 1-1/2"
-
L - 2-1/4"
-
Y - 15/16"
